Guide Rails
Bent Hoistway Door Guide Rail?
Courion Hoistway Door Guide Rails are manufactured specifically for your particular hoistway opening. All we need is the JOB NUMBER, JOB NAME, or JOB LOCATION, along with the Elevator Number and Landing Number to process your order. Please specify Left or Right Hand.
Hoistway Door Guide Brands
Courion can provide you with replacement door panels for the following freight door systems:

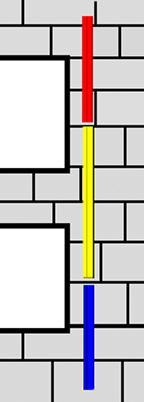

Hoistway Door Guide Rail Types
Upper Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the Upper Guide.
Intermediate Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the Upper Guide. Intermediate Guides serve as the Upper Guide at one opening and the Lower Guide at the opening immediately above.
Lower Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the Lower Guide followed by the letter “A”.
Intermediate Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the Upper Guide. Intermediate Guides serve as the Upper Guide at one opening and the Lower Guide at the opening immediately above.
Lower Guides are labeled with the Courion door mark corresponding to the opening for which they serve as the Lower Guide followed by the letter “A”.
Guide Rail Features
- Stainless Steel
- Painted
Additional Guide Rail Parts
- Guide Rail Shims
- Adjustable Guide Stops
- Guide Lugs
- Door Guide Hardware Kit
